New insights into urban air pollution through novel road traffic and vehicle emission remote sensing

One of the frustrations with the analysis of air quality data is the lack of representative vehicle activity data. Such data has the potential to generate useful information on source apportionment and hence provide insights into the most effective mitigation measures that should be considered to improve air quality.

This blog looks at how new types of traffic measurement data can be used with vehicle emission remote sensing data to better-understand the contributions made by different vehicle types to urban NO_x and NO₂ emissions and concentrations. The reduced traffic experienced throughout several lockdowns over the past year has provided a unique opportunity to investigate these issues in more depth and quantify the effect on ambient concentrations of NO_x and NO₂.

This blog has been jointly written with Vivacity Labs, intelligent transport systems solution provider, and developer of the novel camera-based traffic sensor used to gather data for the analysis presented below. By using a camera as the main sensing component, Vivacity is able to extract a higher resolution of detail on different road users than sensors based on electro-magnetic interference or radar signals. This gives the sensor the ability to distinguish between a car and a van (LGV), and a cyclist and motorbike, and a bus and a heavy goods vehicle (HGV). The devices make use of edge processing software to anonymously detect and classify the road users to ensure that no personal data is gathered. The video from the camera is not stored or transmitted from the device. The sensor, launched in 2017, has now been deployed in more than 30 cities across the UK.

During 2020, Vivacity Labs supported the Department for Transport’s national initiative to monitor the impact of Covid-19. Our blog makes use of this data set, but for the first time combines it with national air quality monitoring data, enabling new conclusions to be drawn on the impact that the 2020 lockdowns had on the sources of air pollution.

A selection of 440 sites has been used to provide a national view of traffic trends in the UK, including 10 cities, a major trunk road and a number of rural locations. In total more than 800 million traffic movements are included in this analysis across the 13-month period. The data set covers city centres, local centres, residential roads, business and retail parks and urban and rural green spaces.

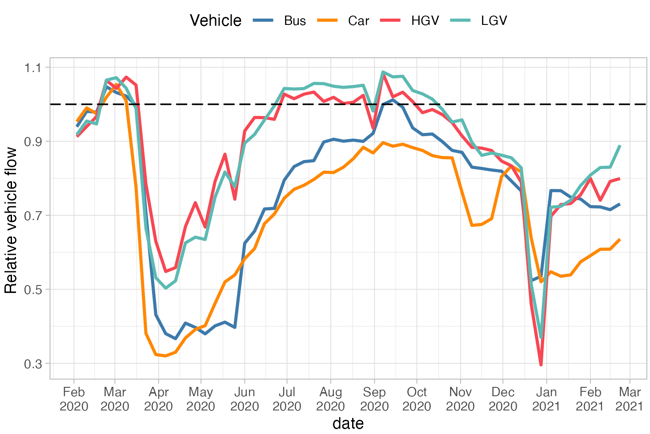

Figure 1: Normalised trend in the flows of different vehicle types over one year since February 2020 based on Vivacity vehicle measurements. The data have been normalised such that the average flow over the period February to 16 March 2020 is set to a value of one.

The detailed traffic information can be combined with Ricardo’s vehicle emission remote sensing measurements¹ to provide information on the contribution made by different vehicle types to urban NO_x emissions. The results are illustrated in Figure 2, showing that passenger cars contribute almost 60% of the total NO_x emissions – as well as highlighting the impact of buses, which contribute 17% of the total for pre-lockdown condition emissions.

These numbers gloss over a huge amount of important detail. For example, the emissions represent the real-world performance of in-use vehicle fleets measured across a wide range of urban areas in the UK in terms of fuel type, vehicle age, emissions control technology and mileage split. They also provide evidence of emissions under real driving conditions incorporating the effects of factors such as changes in ambient temperature and any deterioration in engine or after-treatment technology. The data also provide a consistent measurement of emissions from a large range of vehicle types from motorcycles through to HGVs and buses and coaches. In other words, the emissions data is ideal for these purposes (source apportionment) and ought to represent the most robust way of quantifying the contribution made by vehicles to emissions of NO_x. In addition, the remote sensing data presented here has now been used to translate individual vehicle measurements through to estimating national totals (Davison et al., 2021).

During the lockdown periods over the past year, the contributions from different vehicles changed. The passenger car contribution decreased to 53% and LGVs and HGVs together contributed just under a third of the total NO_x, which is seen more clearly in Figure 1.

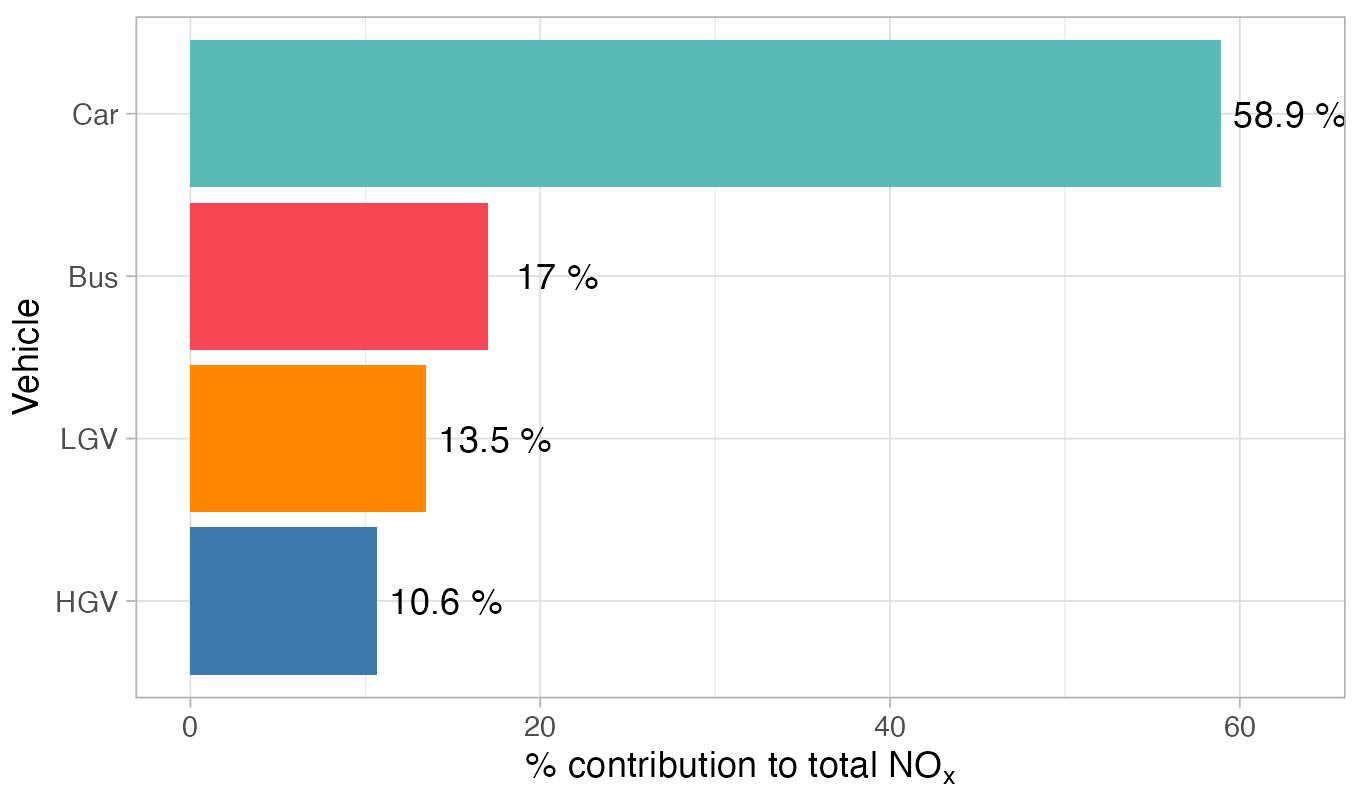

Figure 2: Estimated emissions contribution by main vehicle type in urban areas based on combining Vivacity measurements with Ricardo vehicle emission remote sensing measurements.

The relative apportionment of NO_x emissions by vehicle types is shown in Figure 3, which highlights the very clear reduced NO_x emissions during the first lockdown – but also the continued reduced emissions in late 2020 and into 2021. The vehicle measurement data strongly suggests that even in late February 2021 vehicle flows remained well below typical values, which translates to lower overall NO_x emissions as shown in Figure 3.

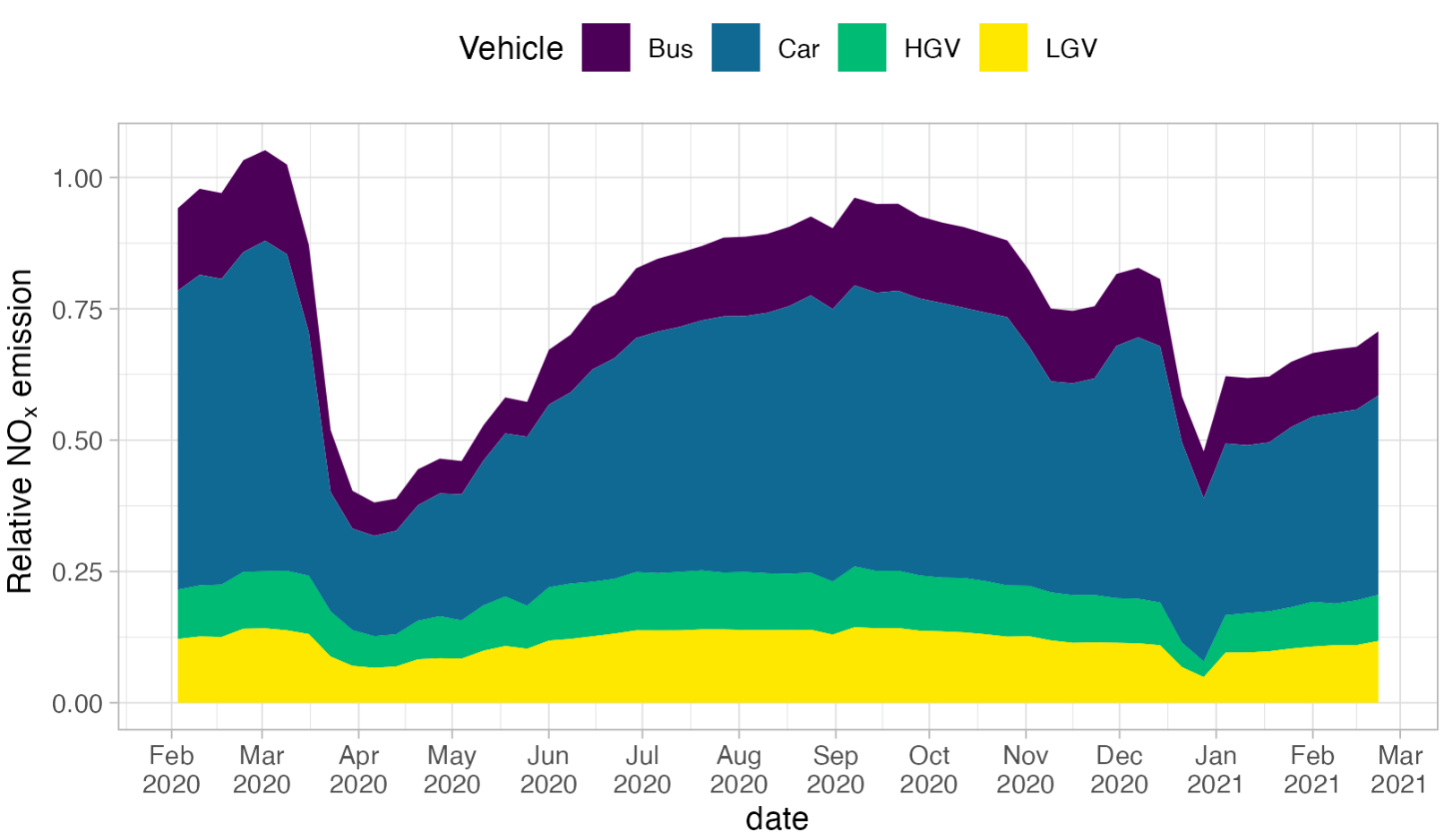

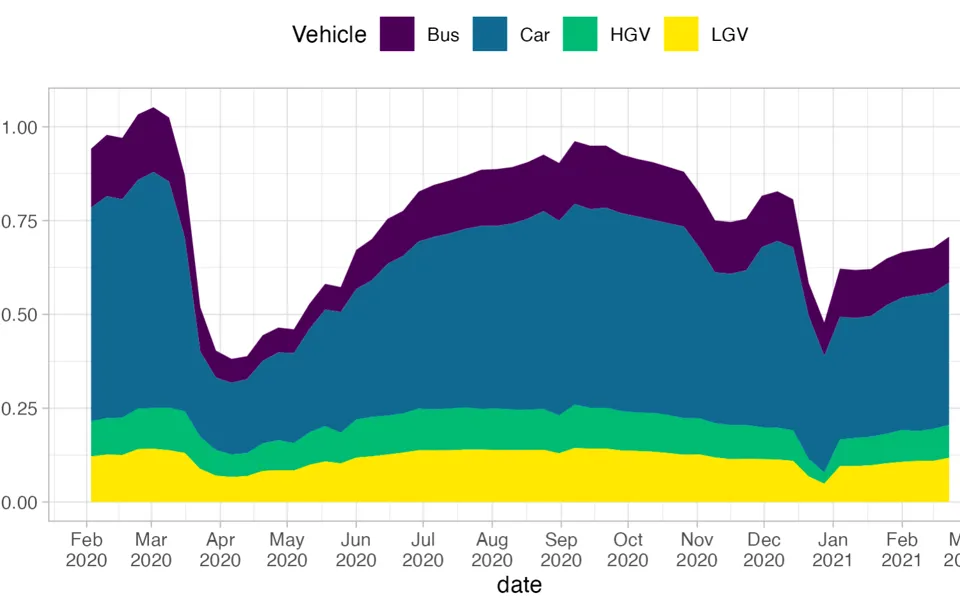

Figure 3: Trend in calculated emissions of NO_x since February 2020, split by main vehicle type.

The trend in traffic NO_x emissions can be compared with the ambient measurements of NO_x and NO₂. Figure 4 shows how concentrations of NO₂ deviated from expected values using the counterfactual approach highlighted in Ricardo’s first blog (Grange and Carslaw, 2019). This modelling covers more than 70 urban traffic and urban background sites and aims in this case to provide an overall average urban NO₂ change over the past year. What is clear from Figure 4 is how well it corresponds to the changes in traffic shown in Figure 3 – and confirms the continued lower than normal concentrations throughout the early part of 2021. It should be noted the large decrease in later December 2020 is more in line with expected behaviour because of lower levels of traffic over the Christmas period. Even though this analysis provides an aggregated view of changes in emissions and concentrations, it has the benefit of reducing the influence of specific, very localised changes seen in the air quality measurements, to provide a representative view of the response in urban areas in general.

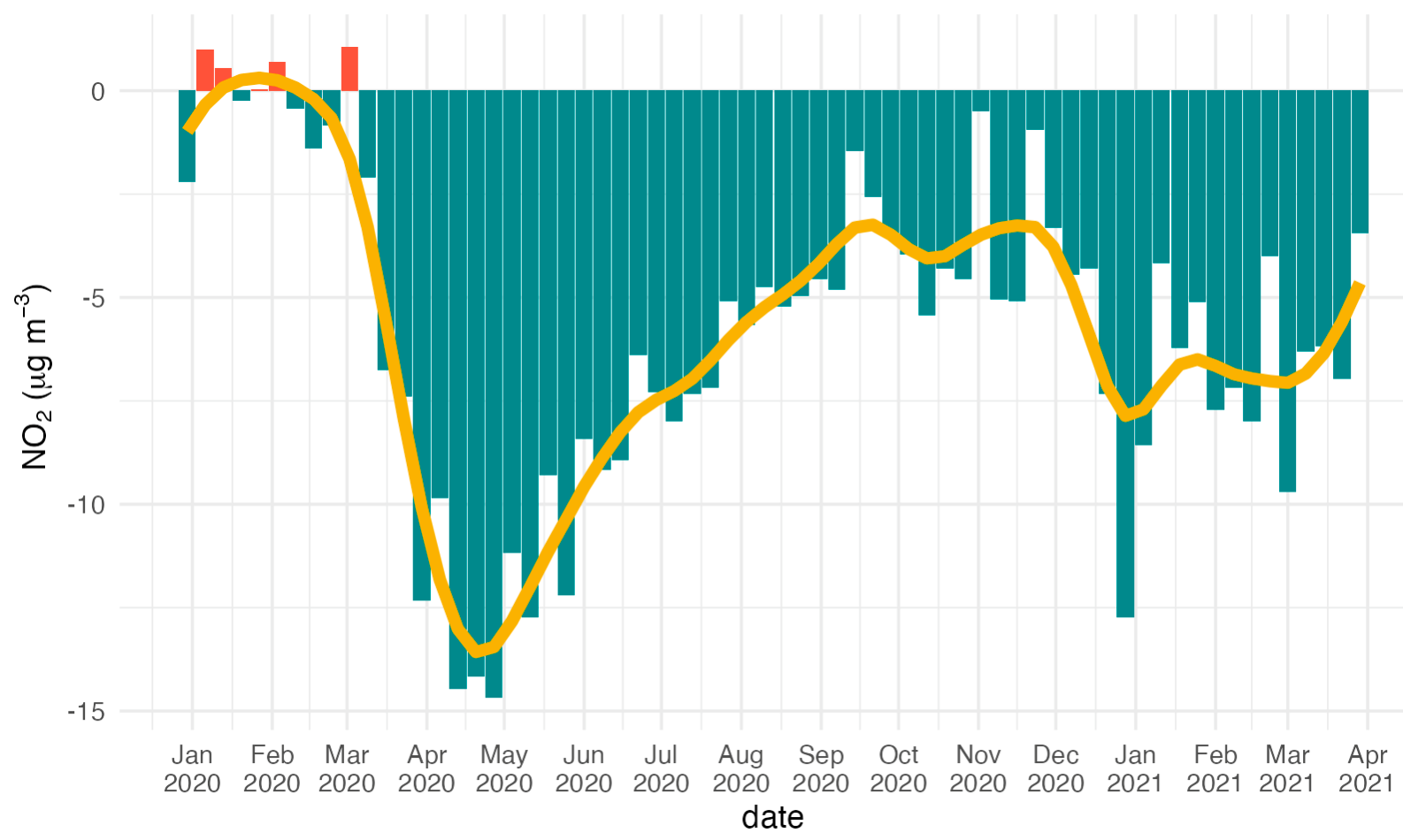

Figure 4: Deviation in average NO₂ concentration based on the analysis or urban roadside and background air pollution measurements sites. The yellow line shows the smoothed trend.

It is possible to go one step further with the analysis and combine the weekly changes in concentrations of NO_x with the weekly changes in emissions of NO_x shown in Figure 3. Combining the two data sets reveals a close to linear relationship between the average change in NO_x concentration and the relative emission of NO_x – seen in Figure 5.

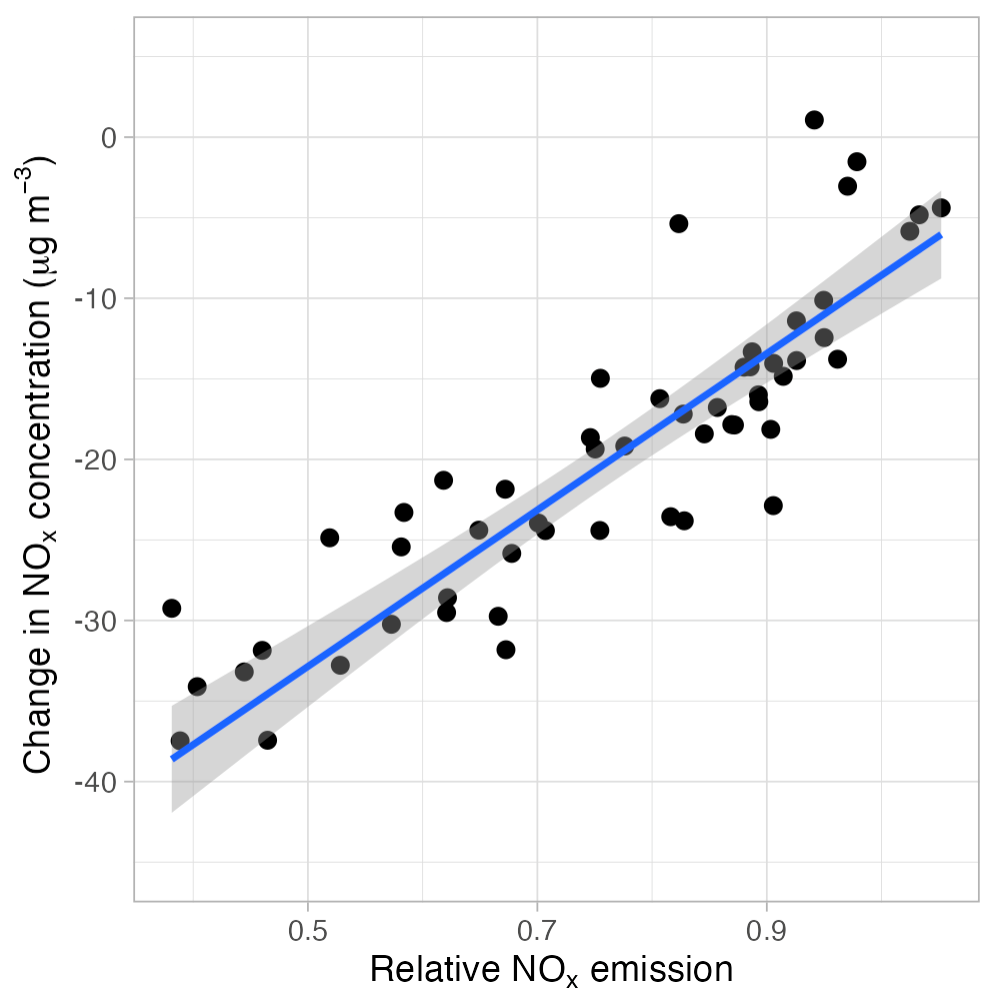

Figure 5: Relationship between the relative change in traffic emissions of NO_x and the corresponding ambient concentration of NO_x based on weekly averaged data.

The information in Figure 5 can be used to estimate the average urban contribution road vehicles make to NO_x and NO₂ concentrations. Overall, it is estimated that road vehicles contribute to 77% of urban NO_x concentrations and about 66% to NO₂ concentrations. There is a difference though between roadside and urban background locations, with roadside locations seeing a 78% contribution of NO_x concentrations from road vehicles and urban background sites seeing a 55% contribution. These results highlight the continuing importance of road vehicles in terms of their contribution to NO_x and NO₂ concentrations – and emphasises the need to further reduce emissions, even after decades of increasingly stringent emissions control.

The next step will be to consider changes in specific urban areas, which should help provide valuable information on the factors that control pollutant concentrations – and hence provide important information on how best to reduce the air pollution burden in our cities.
